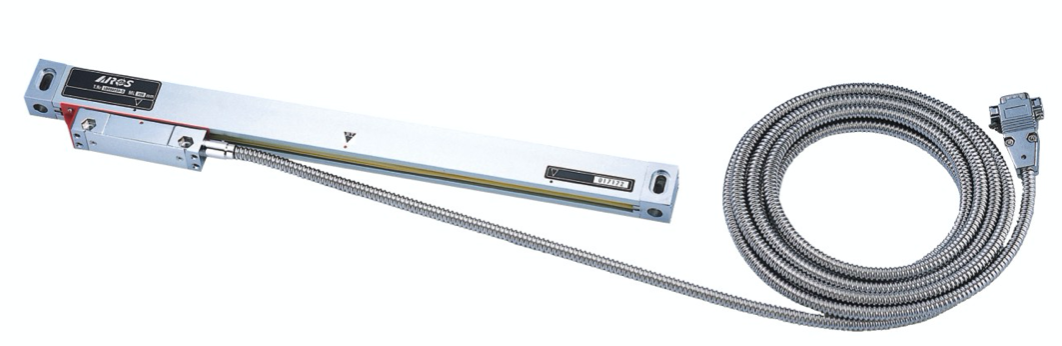

Thin optical ruler (suitable for smaller installation space):

· Resolution: 0.005mm (standard); 0.001mm (optional)
· Measuring length (ML): 50mm~1100mm
· Signal output mode: 5V, TTL (standard); RS422 (optional)
· Accuracy: ±(5+L/200) μm
· Response speed: 60M/min (5V); 20M/min (1V)

feature of product:

· High-precision glass optical ruler
· Use five sets of bearings, no direct contact, long life
· Aluminum alloy special treatment, oil and water resistance, stain resistance
· Easy installation and maintenance
