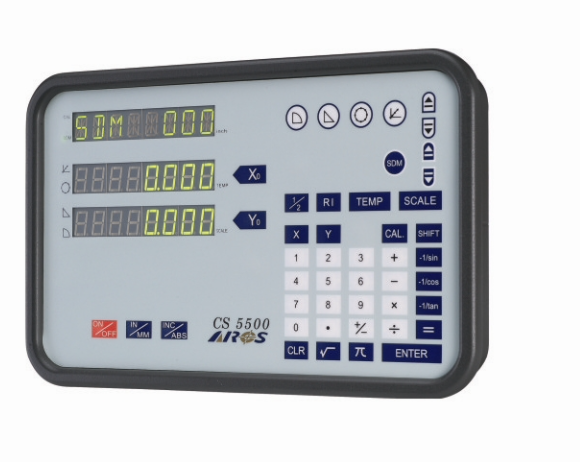

Multifunctional display:

· Number of axes: 2, 3 axes

Features:

Aluminum alloy shell, impact resistance and noise resistance (2000V)
999 sets of SDM coordinate switching
Zero
1/2 key
Mm/inch metric switch
INC/ABS absolute/relative coordinate switch
Unit reading selection
.0001, 0.0002, 0.0005, 0.001, 0.002, 0.005, 0.01, 0.02, 0.05mm
RAD/DIA diameter and radius selection
DIR: coordinate polarity switch
Preset processing size
Shrinkage rate setting
Calculator function
Processing function:
ircumferential hole, inclined surface processing, oblique line hole, arc processing
RI mechanical origin tracking
Mechanical error correction: linear correction
Instantaneous power failure reading memory
RS-232 reading output
Power supply: DC 8V-30V, 0.8A
· With external pull-out power supply AC-100-240V
