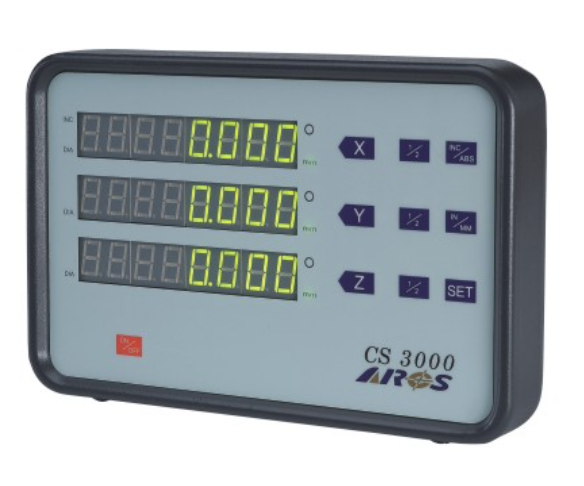

Standard display:

· Number of axes: 2, 3 axes

· Aluminum alloy shell, impact resistance and noise resistance (2000V)
· Zero
· 1/2 key
· Mm/inch metric switch
·INC/ABS absolute/relative coordinate switching
· Unit reading selection
0.0001, 0.0002, 0.0005, 0.001, 0.002, 0.005, 0.01, 0.02, 0.05, 0.1, 0.2, 0.5, 1, 5, 10mm
· Decoder: 1°~0.0001°
· RAD/DIA diameter and radius selection
· DIR: coordinate polarity switch
· Mechanical error correction: linear correction
· Instantaneous power failure reading memory
· Self-diagnosis function
· RS-232 reading output
· Operating voltage: DC 8V-30V, 0.8A
· With external pull-out power supply AC100-240V
